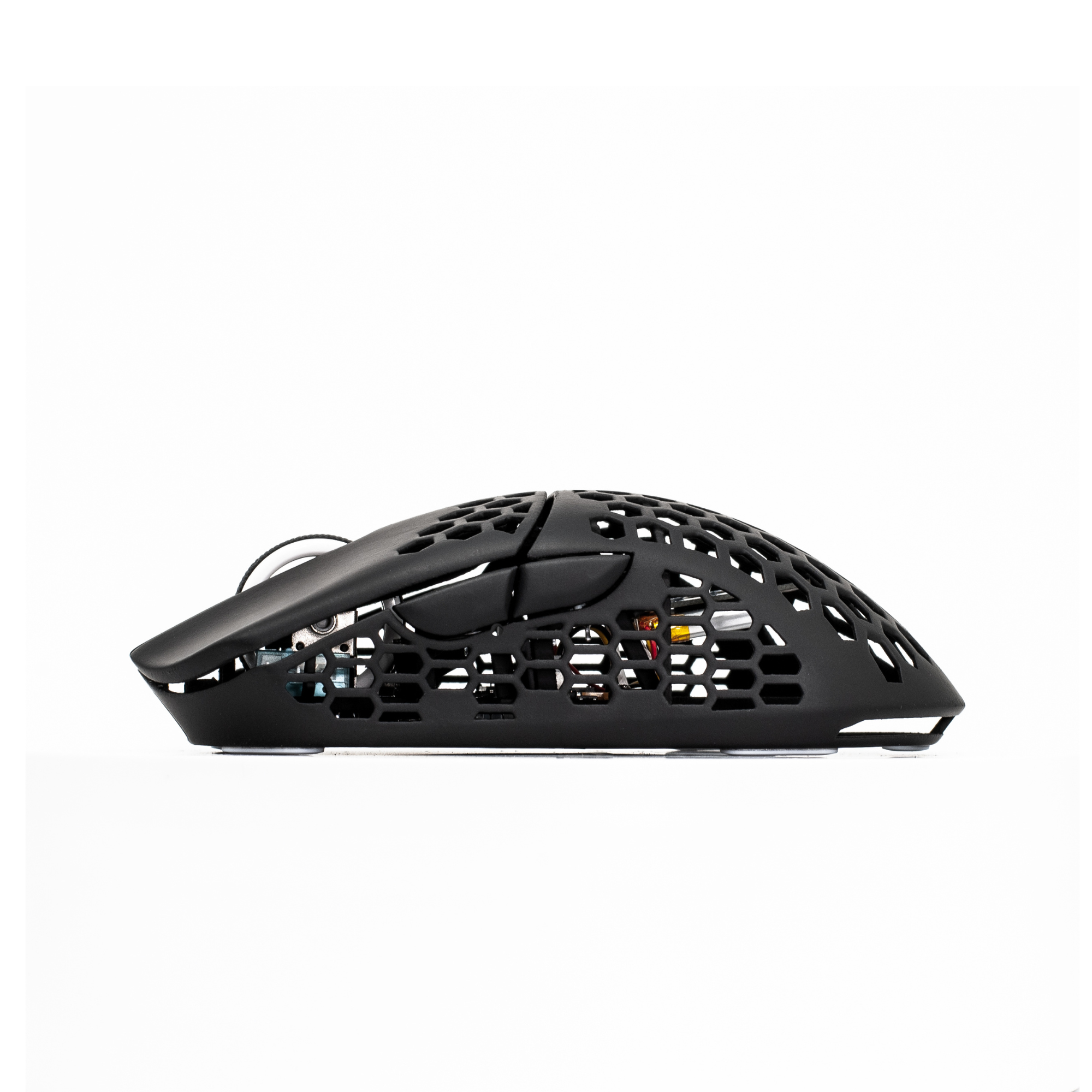

VORTEX 4K M
Internals VGN F1 Pro
Weight ~32g
Inspiration Finalmouse Starlight-12 M aka ULX Lion
Dimensions [mm] 120.82 // 62.40 // 37.29
CUSTOMIZE YOUR MOUSE BELOW
Tax and Shipping calculated at checkout.
ABOUT THE VORTEX 4K M
VGN F1 Pro
PixArt 3395
Nordic nRF52833
UCB-C Front Charging
Up to 4K [4k dongle not included]
Hinge Click Design
G305 or Dot Skates
65h [250mAh]
Up to 26k
Hinge Click Design
This newly developed click design allows an easy assembly and creates extra crisp clicks.
New Development
THE ULTRAGRIP COATING 2.0
Our shells now feature the new UltraGrip Coating, providing exceptional grip and revolutionizing the gaming experience. This coating is ideal for those who prefer a firm connection with their mouse without the need for grip tape. The surface has a matte finish with a chalky texture, offering superior control.
[UltraGrip 2.0 offers enhanced sweat resistance with a smooth & dry feel of the mouse surface]
In contrast, the Standard slightly glossy coating offers a smooth feel with a subtle, somewhat grainy texture.
STANDARD COATING
ULTRAGRIP COATING
MOUSE SWITCHES
We understand that everyone has unique preferences for the feel and sound of their clicks. That’s why we offer the flexibility to customize your device by soldering different switches.
In Logitech PRE-BUILTS, we solder the switches for you. When you order a mod kit, you have two options:
Solder Yourself: For those who enjoy hands-on customization, you can choose to solder the switches yourself.
Hot Swap Cable: If you prefer a simpler method, opt for the hot swap cable, which allows you to change switches without soldering.
What is Soldering?
Soldering is a process used to join electronic components together by melting a filler metal (solder) to create a permanent bond. It’s a crucial skill in electronics, allowing you to replace or customize parts easily.
How does it work?
- Gather Your Tools: You’ll need a soldering iron, solder, desoldering pump or braid, and the switches you want to install.
- Heat the Soldering Iron: Plug in your soldering iron and allow it to reach the appropriate temperature (usually around 350°C or 662°F).
- Remove Old Switches: Use the desoldering pump or braid to remove the old solder from the existing switches. Gently pull the old switches out once the solder is removed.
- Place the New Switches: Insert your new switches into the designated spots.
- Solder the New Switches: Touch the soldering iron to the pins of the new switches and apply a small amount of solder to create a strong connection.
- Check Your Work: Ensure all connections are solid and free of solder bridges (unwanted solder connections).
Need help?
If you're new to soldering or prefer a professional touch, our customer service team is here to assist you. Contact us here for more information on customization services and recommendations for your perfect setup.
COMPARE THE MICRO SWITCHES
The micro switch has a big impact on the click feel. Choose which one you like most! Get a more detailed outlook here.
ACTIVATION FORCE
CLICK FEEL
LIFESPAN
70GF [HEAVY]
Crispy and tactile
60M
65GF [MEDIUM]
Crispy and light
80M
55GF [LIGHT]
Smooth
10M
70GF [HEAVY]
Snappy
80M
70GF [HEAVY]
Snappy
20M
60GF [LIGHT]
Crispy and light
80M
SAPPHIRE vs. PTFE SKATES
100% PTFE TIGER ICE
These mouse skates are designed for top speed and smooth gliding. With rounded edges, there is no scratching on the mousepad. The new adhesive keeps them flat and prevents bending. At 0.8mm thick, they are a great for every mouse and pad. These mouse feet are originally designed for the G305 and were chosen because of the optimal weight to surface ratio.
SAPPHIRE SKATES
Our Sapphire mouse feet have an ultra-polished surface with a mirror finish, providing a smoother glide, low static and higher dynamic friction. The aggressive curvature gives more feedback on textured pads. The rounded edges ensure performance during off-axis movements. Easily sliding over any particles on the mousepad, so less disturbances in-game.
These mouse feet are incredibly durable, with a 9 Mohs hardness that makes them nearly impossible to scratch, except with a diamond. Made from whole single crystal boules, they are cut and shaped with diamond tools to keep the sapphire crystal structure intact. This skates last for a very long time.
They are 7mm in length, 5mm in width and 1.2mm thick. Not recommended for glasspads.
FAQ
Discover additional information about the coverage of your warranty, the shipping process, and the product itself. Feel free to contact us if you require any additional clarification.
How long does shipping take?
We ship from Germany with UPS and it usually takes 1-2 working days within Germany, up to 3 days within the EU and 3-5 days outside of the EU.
Do I have warranty on my order?
PMM gives you a 1 year warranty on all products. Get in touch with support if anything happens!
Where do I find the instructions for the MOD-KIT?
You can find them here: Instructions
Which software works with the mouse?
You can use VGN HUB.
Does the software detect the smaller battery?
VGN shows 100% when the 150mAh battery is fully charged.
Which internals are compatible?
While the PRE-BUILTs will come with VGN F1 Pro internals, you can also use VGN F1 [Non-Pro] and VGN F1 Pro Max electronics since it's simply a larger battery.
