ELITE G603 MOD-KIT INSTRUCTIONS

These are the instructions for all PMM mice that have Logitech G603 internals.

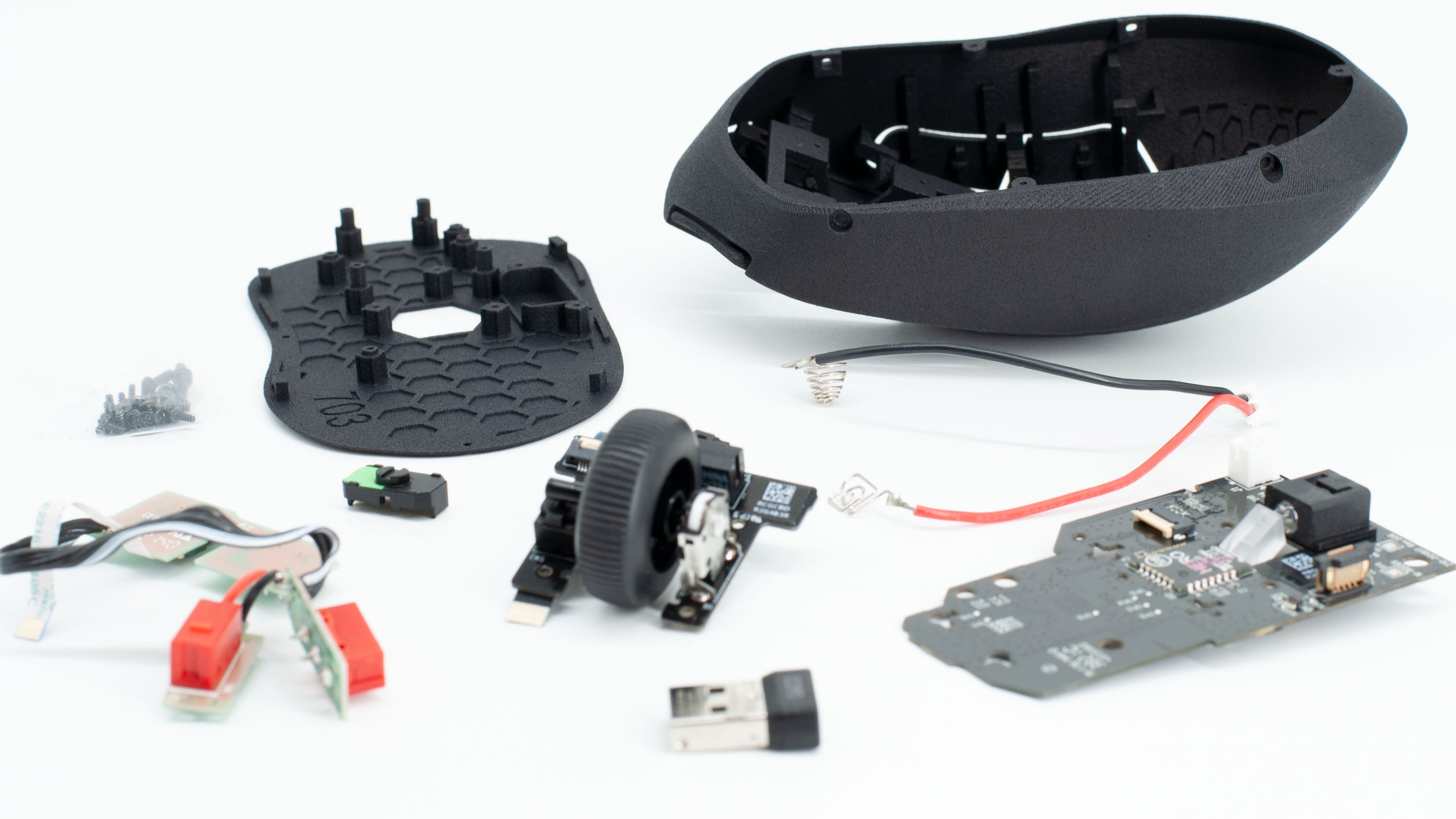

Check if you got all the components of the MOD-KIT including the screws.

  • Shell, Clips, Switches, HOT-SWAP, Instructions, Screwdriver, Skates, Charging cable, Magnetic adapter, battery, Replacement battery cable.

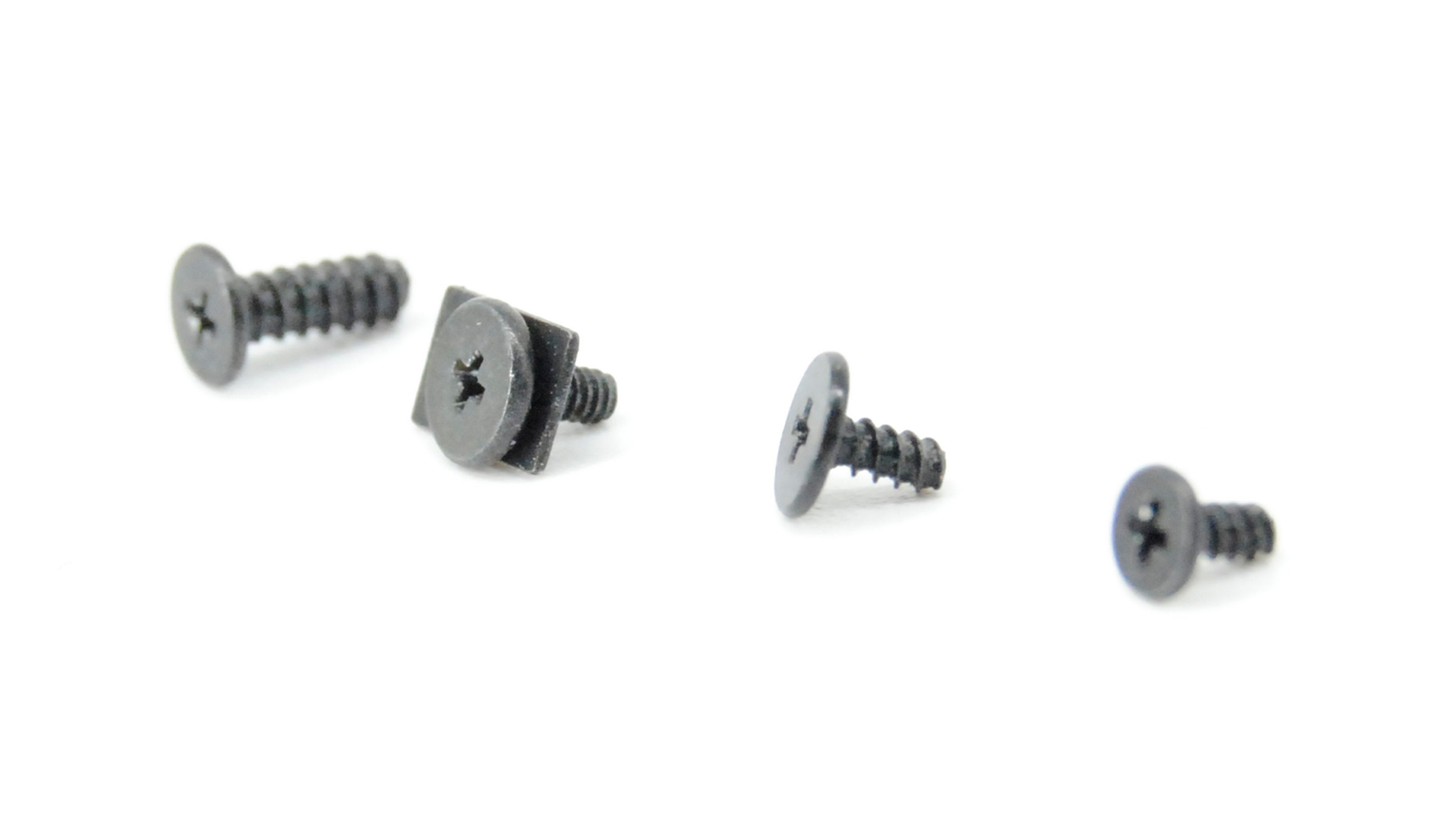

  • From the left to right: Bottom screws, side button screw, mid screws, switch screws [Save those for the end].

1 2

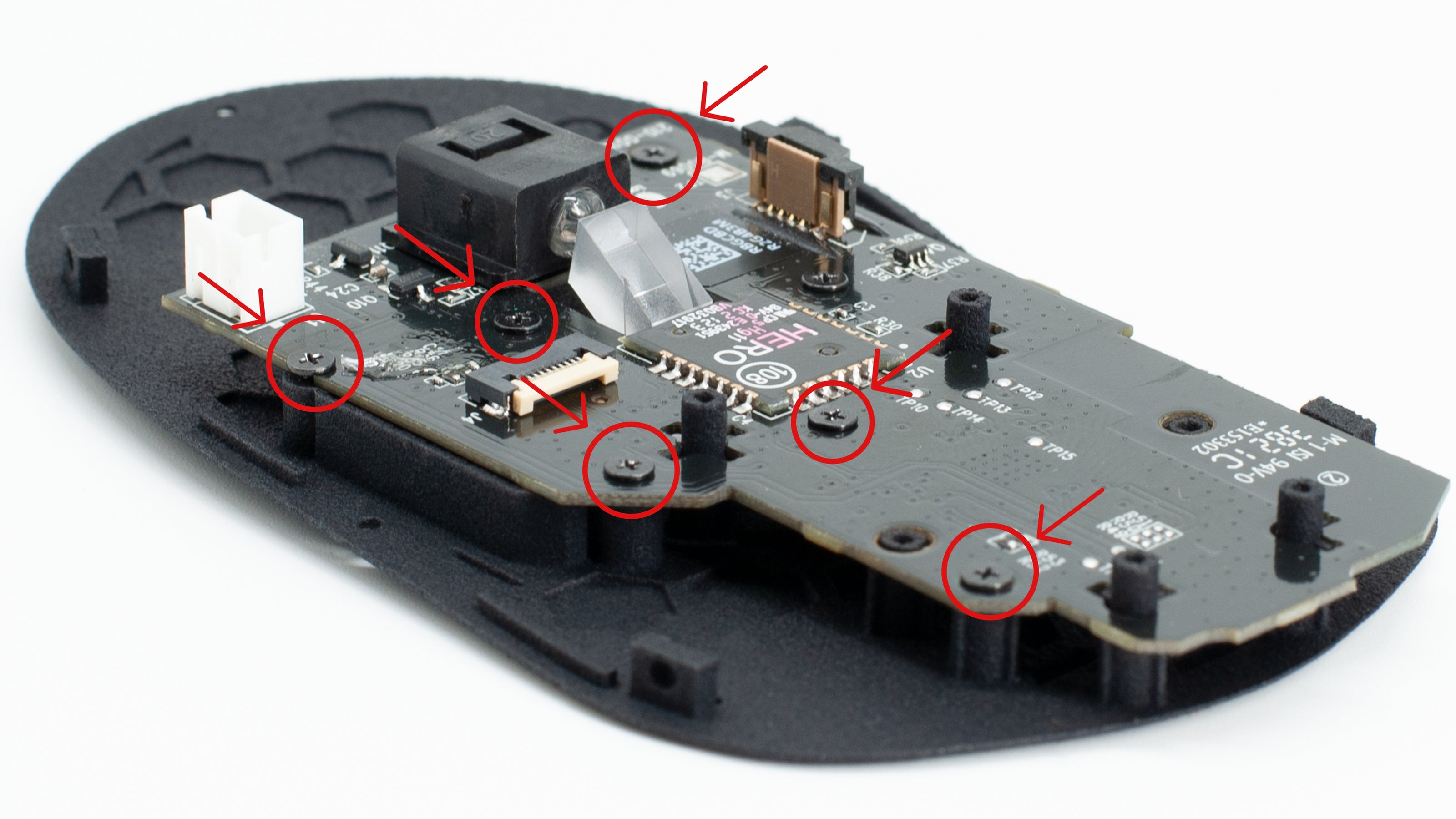

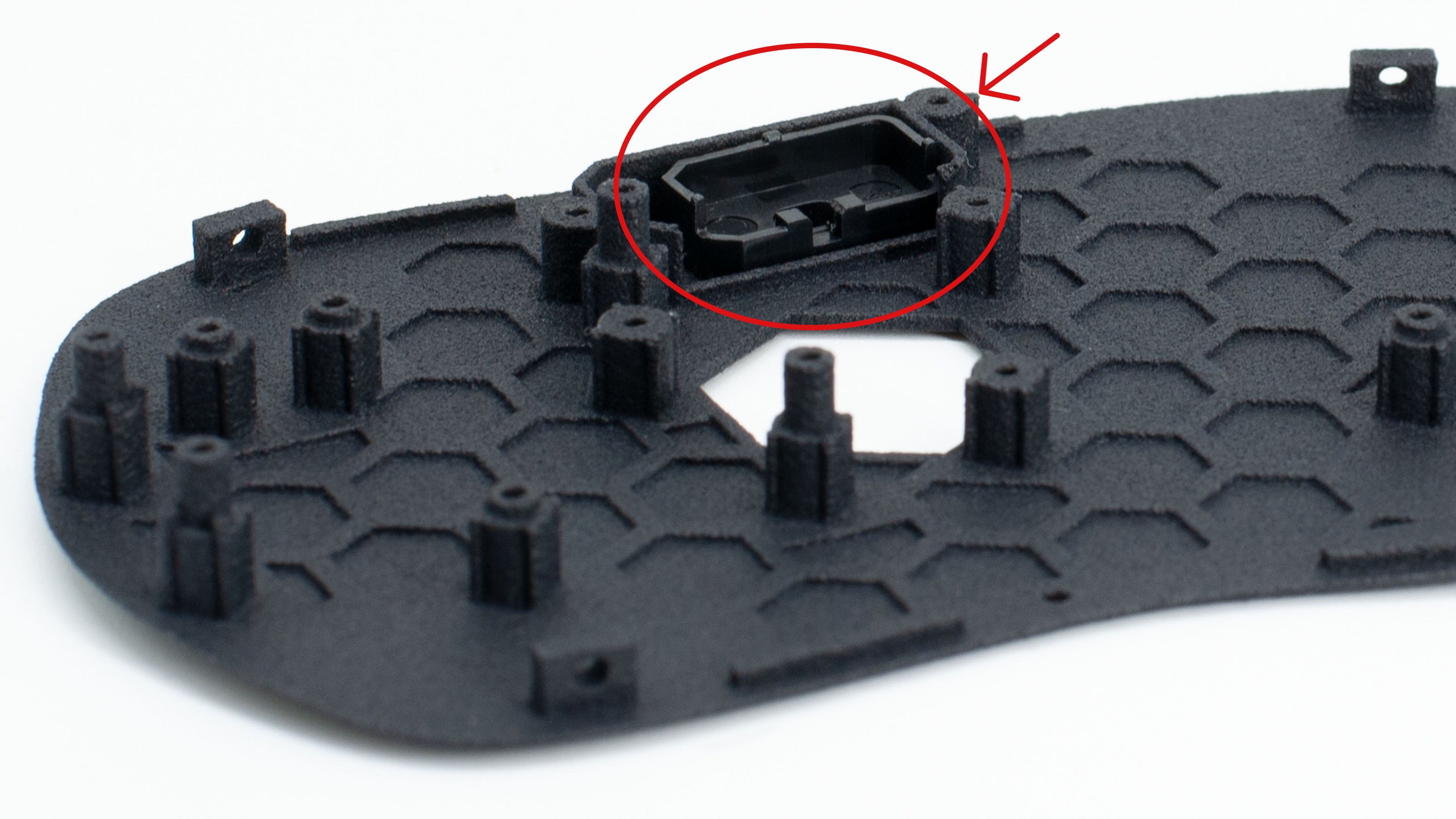

[1] Add on/off switch & the main PCB

  • Pay attention to the orientation!

  • Use 2 mid sized screws and 4 small sized screws. Make sure that the power switch is movable.

1 2

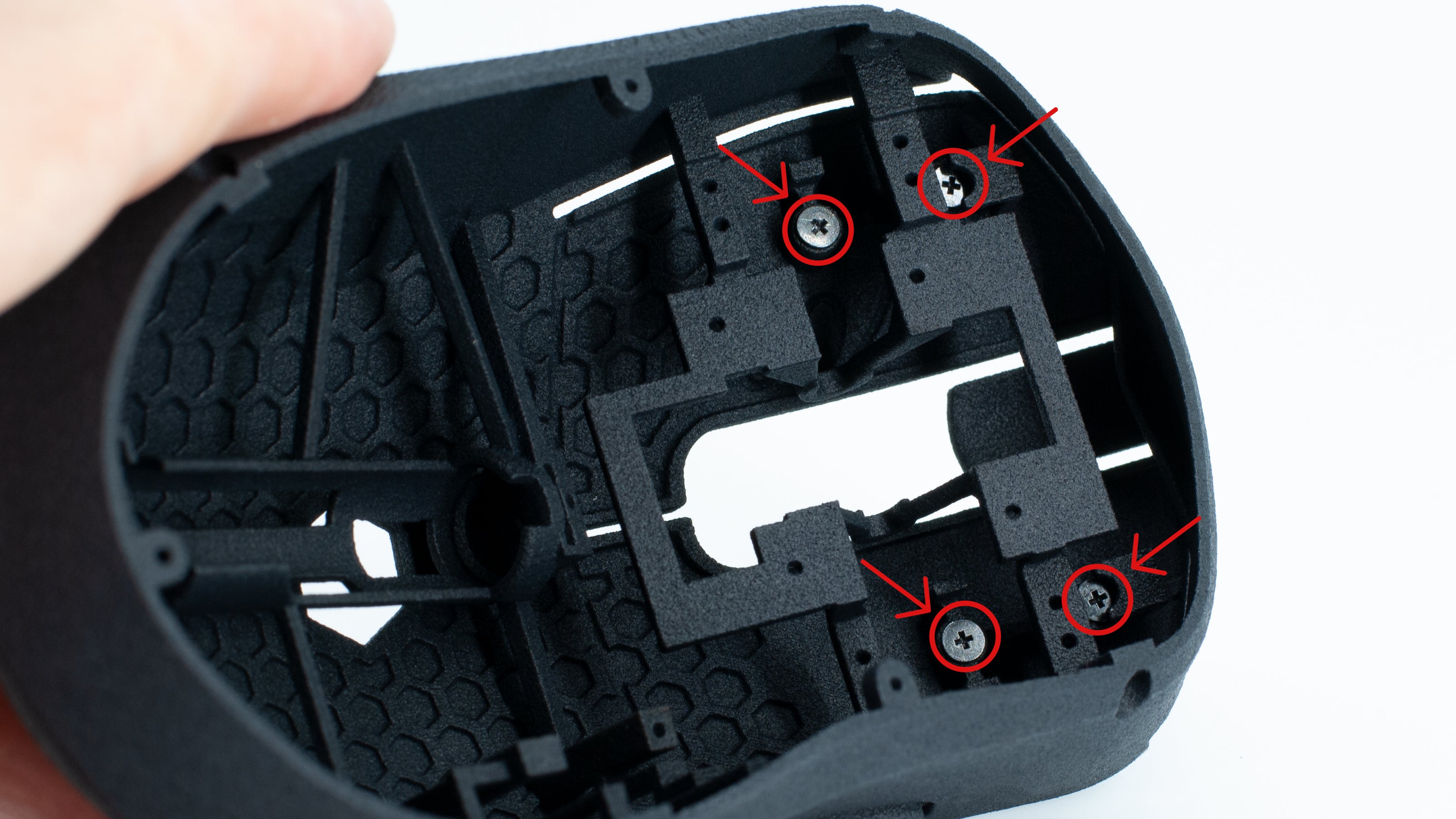

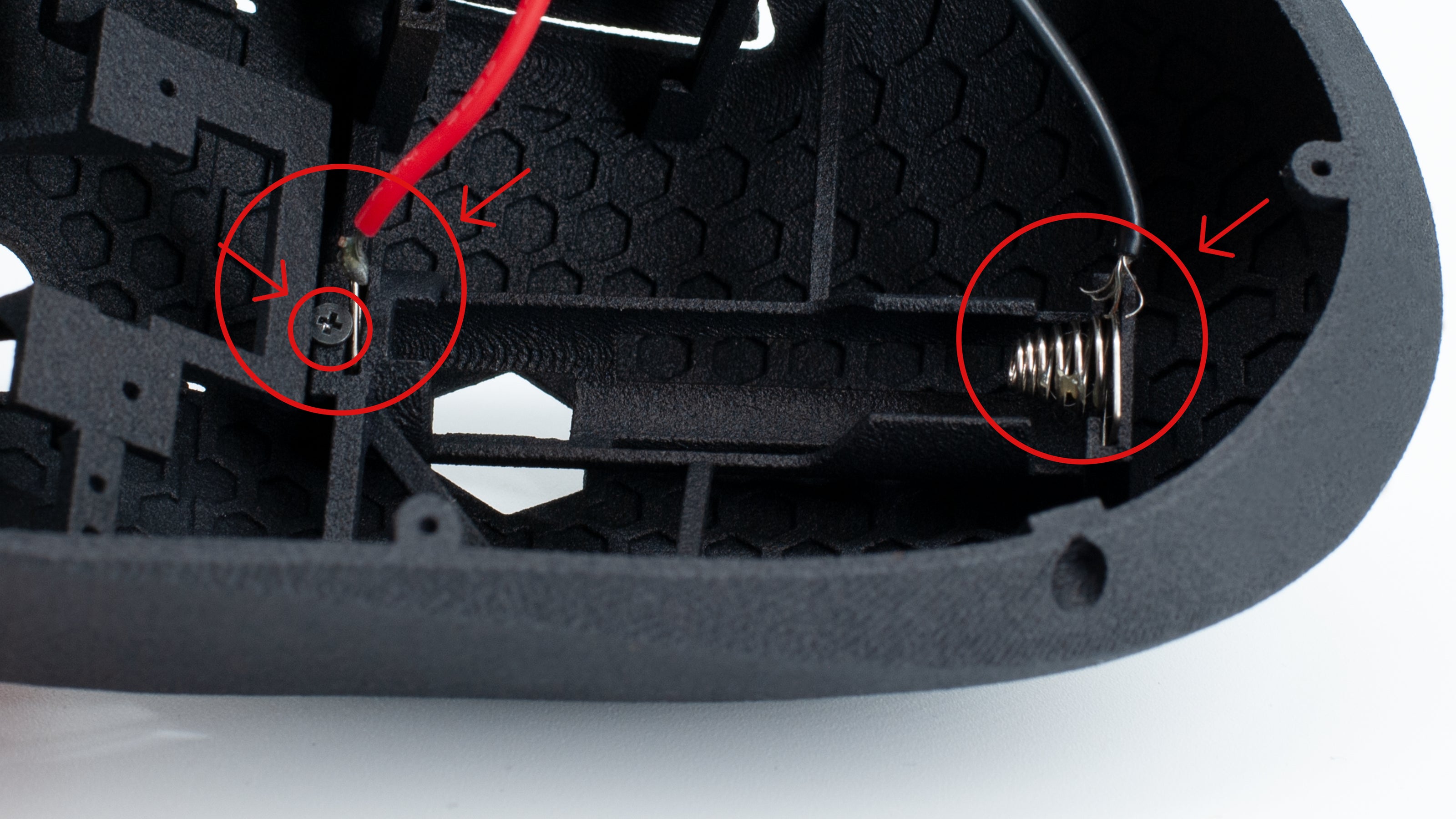

[2] Add screws in the mouse buttons & the battery springs

  • Fasten the screws.

  • Add the red spring first, follow up with the black one, then fasten it using a small screw.

1 2

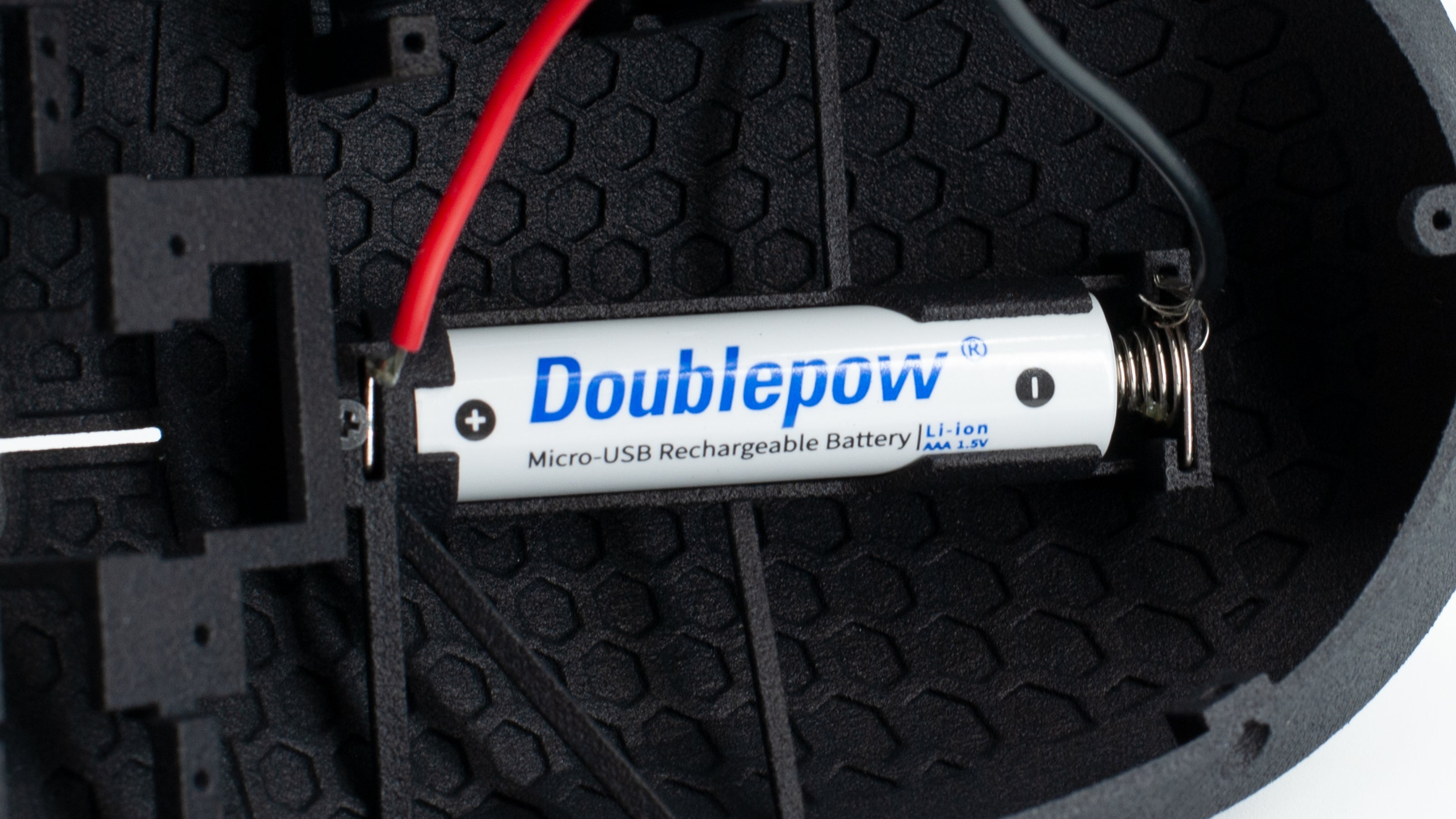

[3] Add the battery

Pay attention to the +/- position.

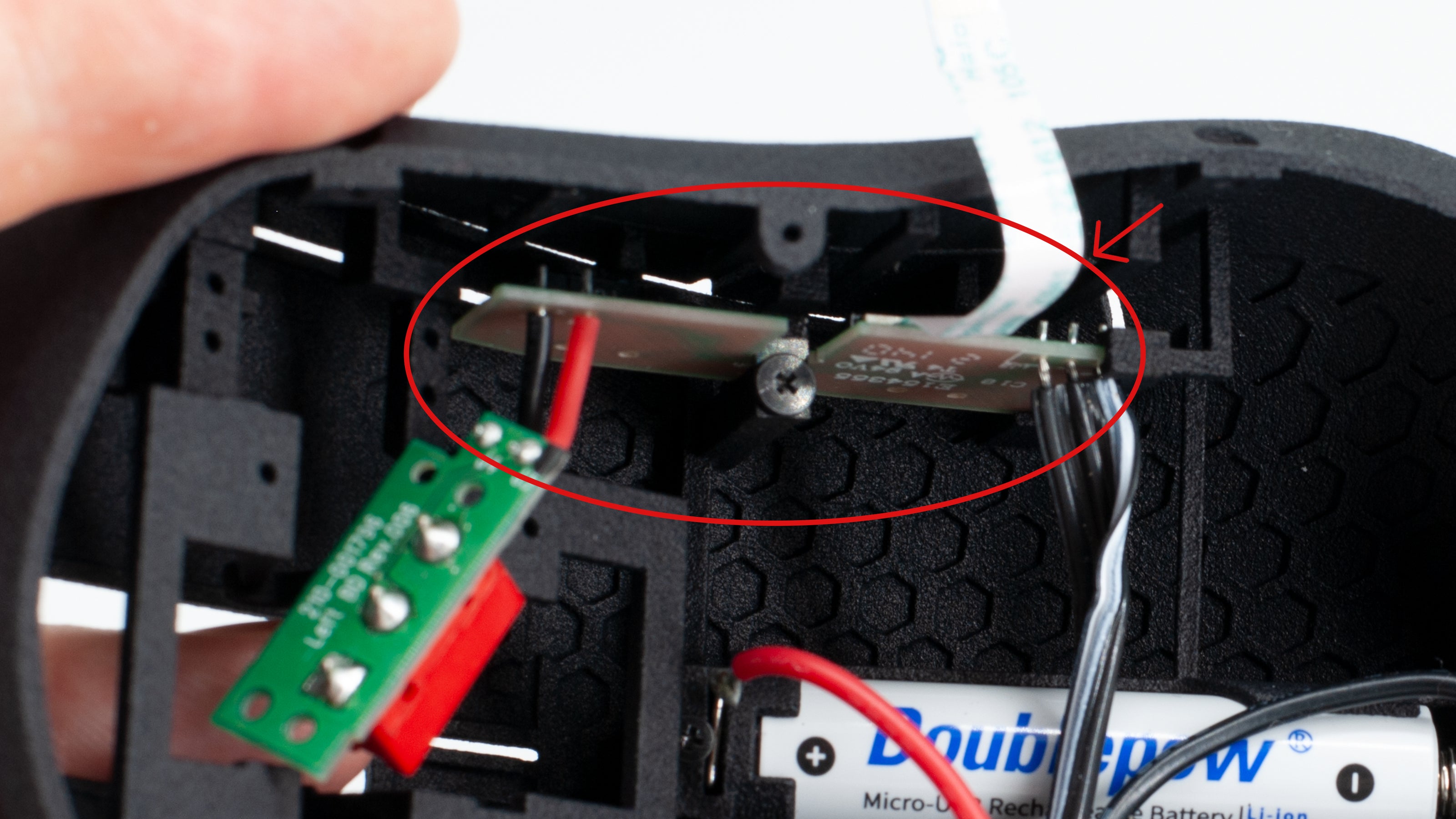

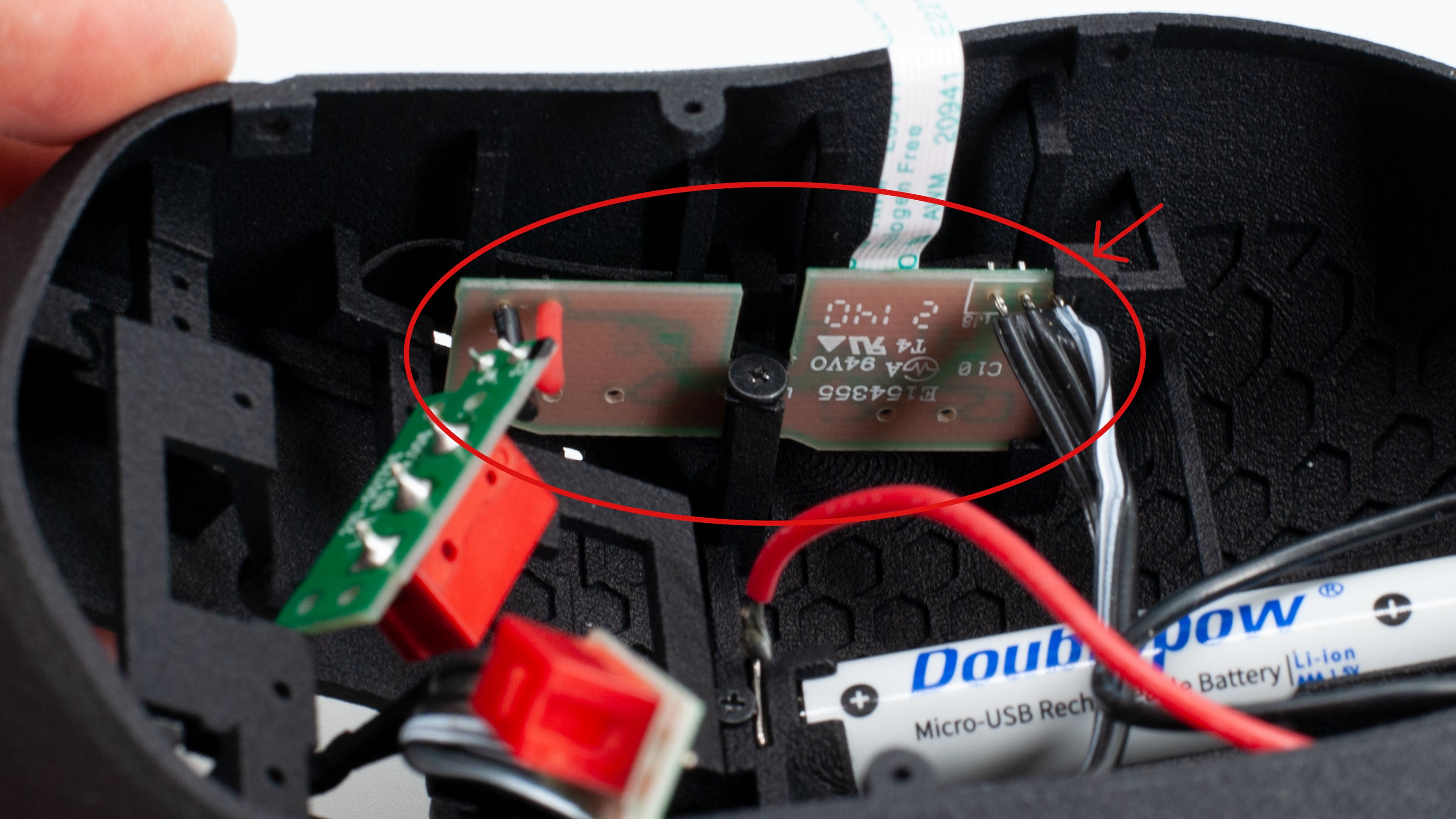

[4] Add side buttons

  • Position the side buttons in their place.

  • Secure them using a plate screw.

1 2

[5] Add micro switches

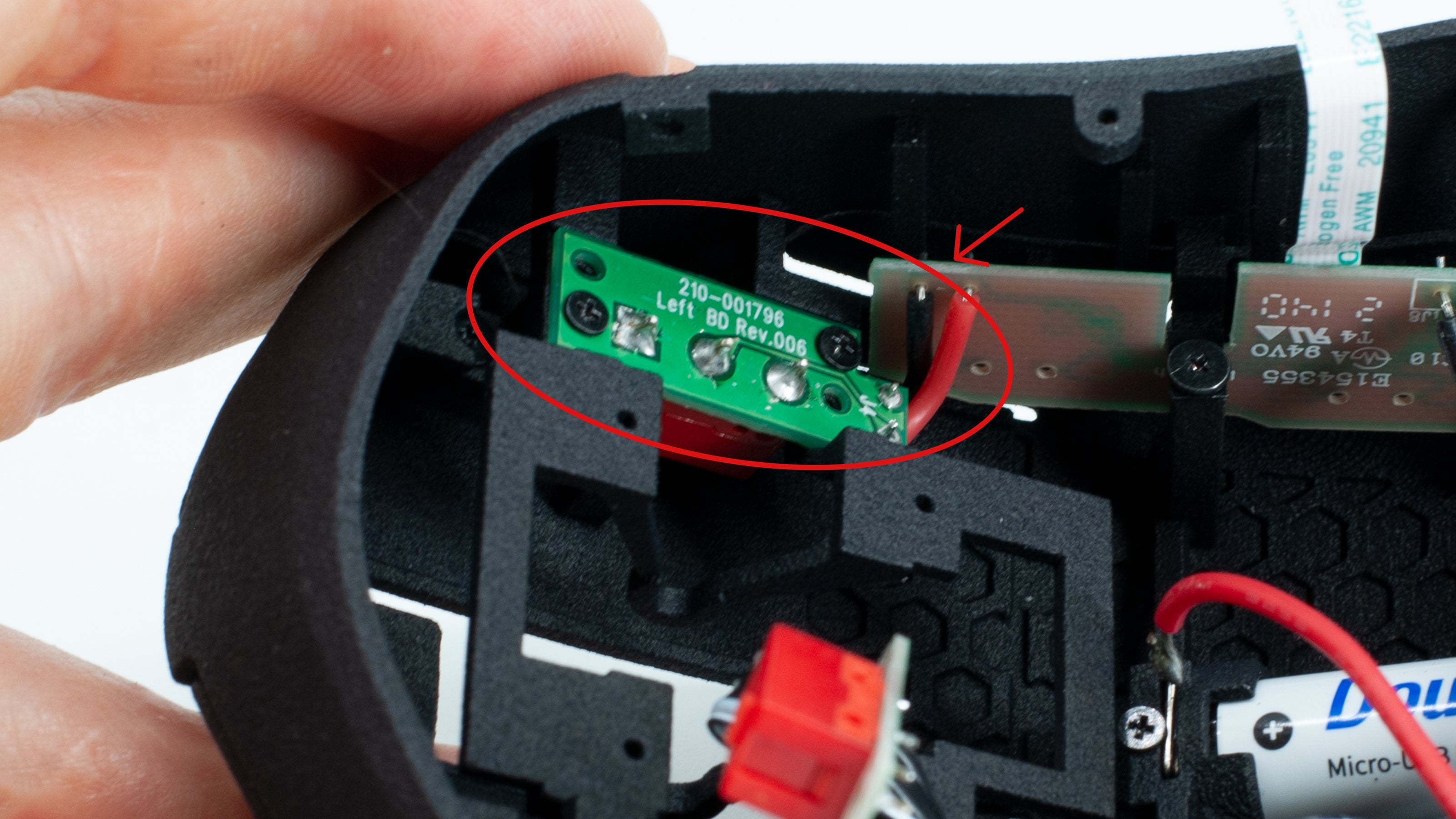

  • Add left micro switch.

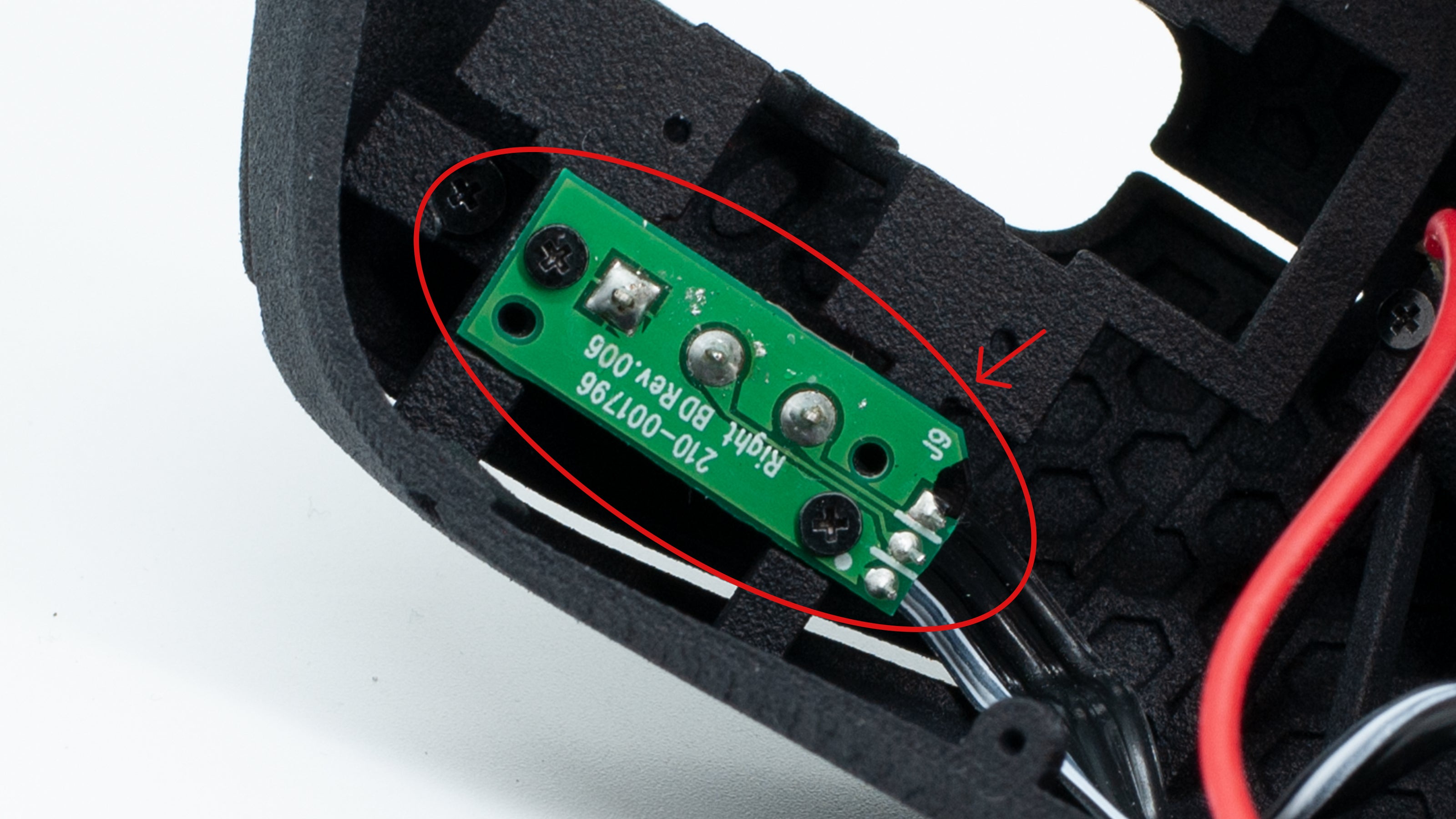

  • Add right micro switch.

1 2

[6] Add scrollwheel and connect the parts

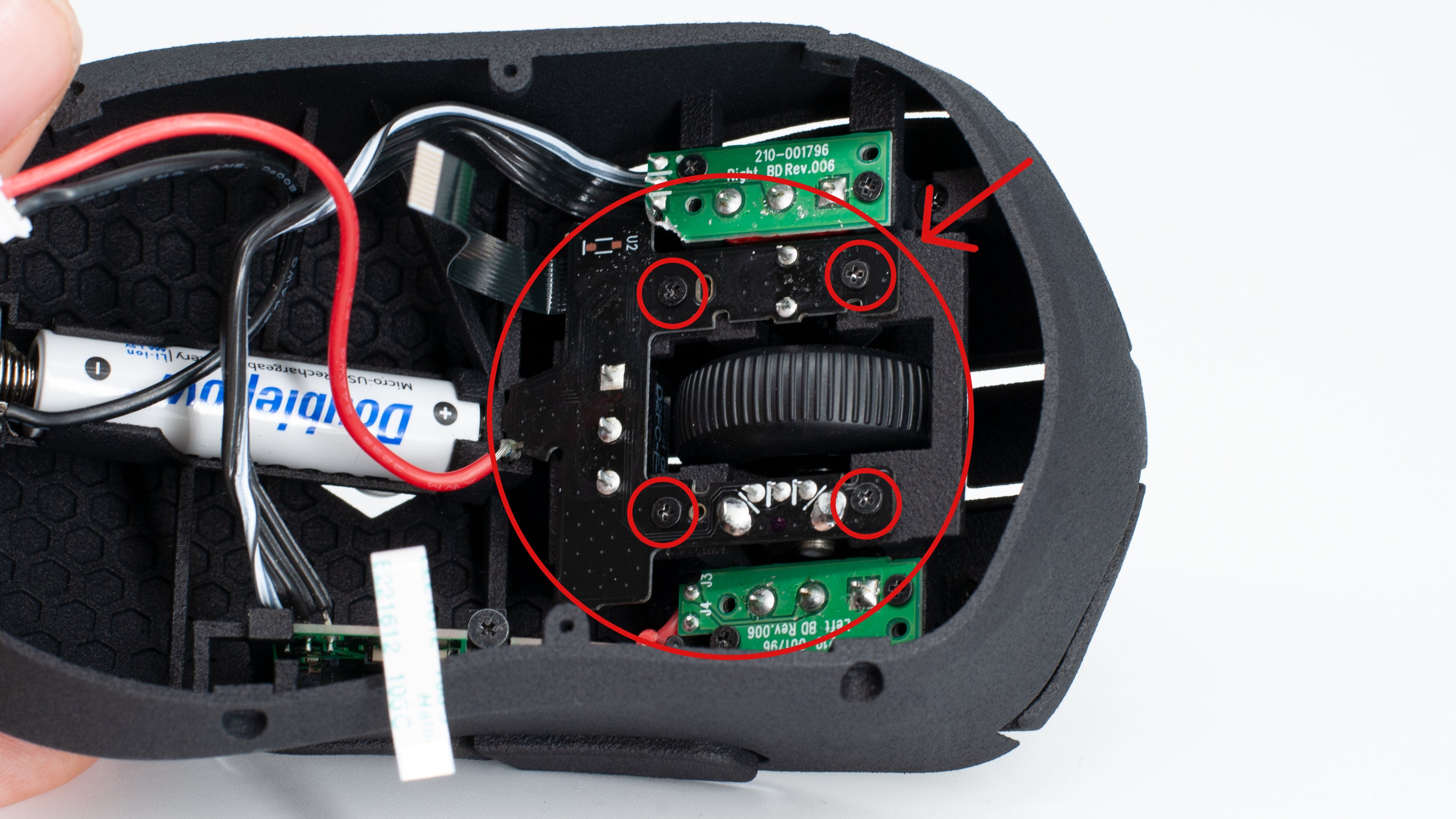

  • Add scrollwheel holder and the scrollwheel.

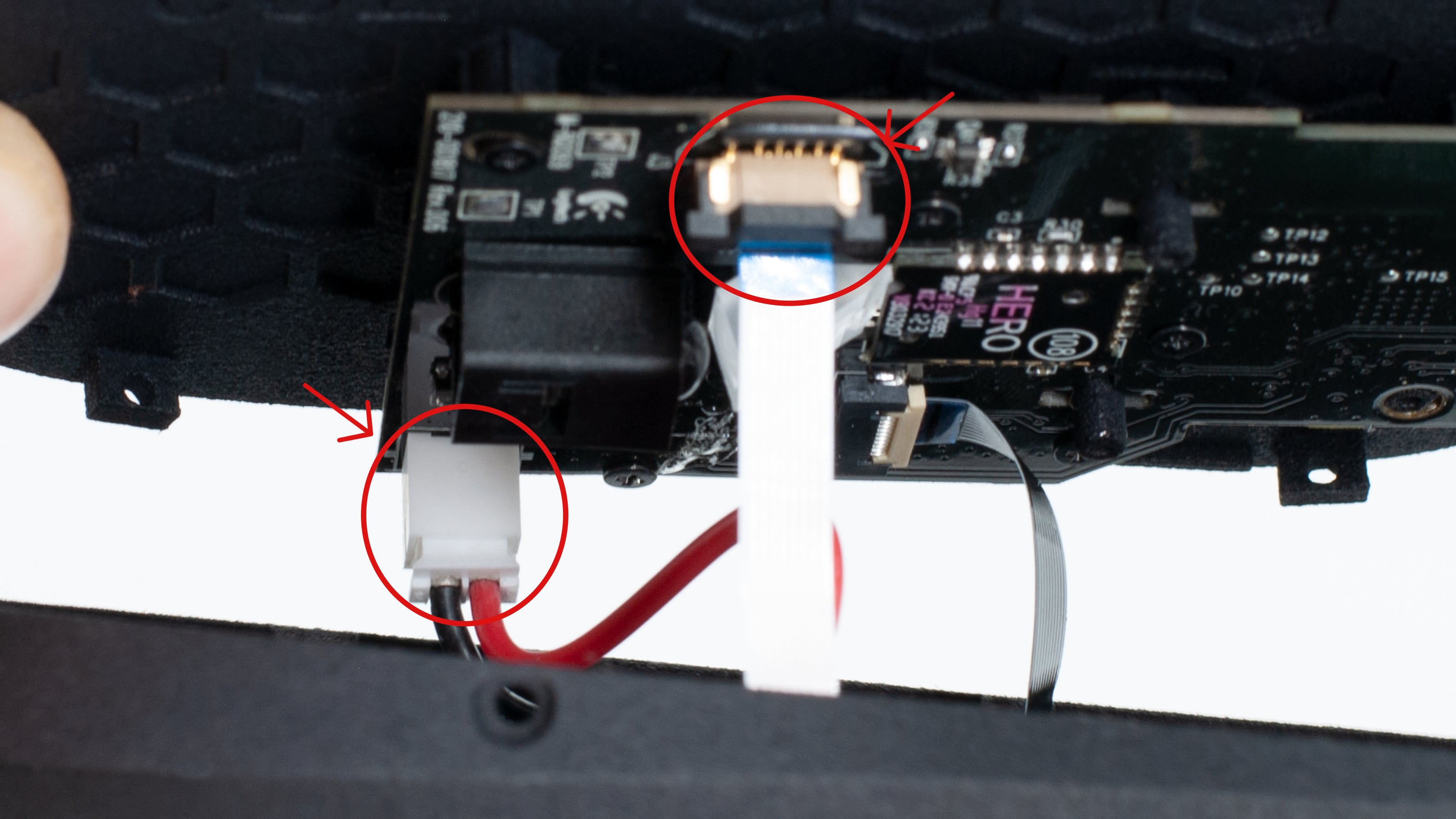

  • Connect the battery cable and the side button film to the PCB.

1 2

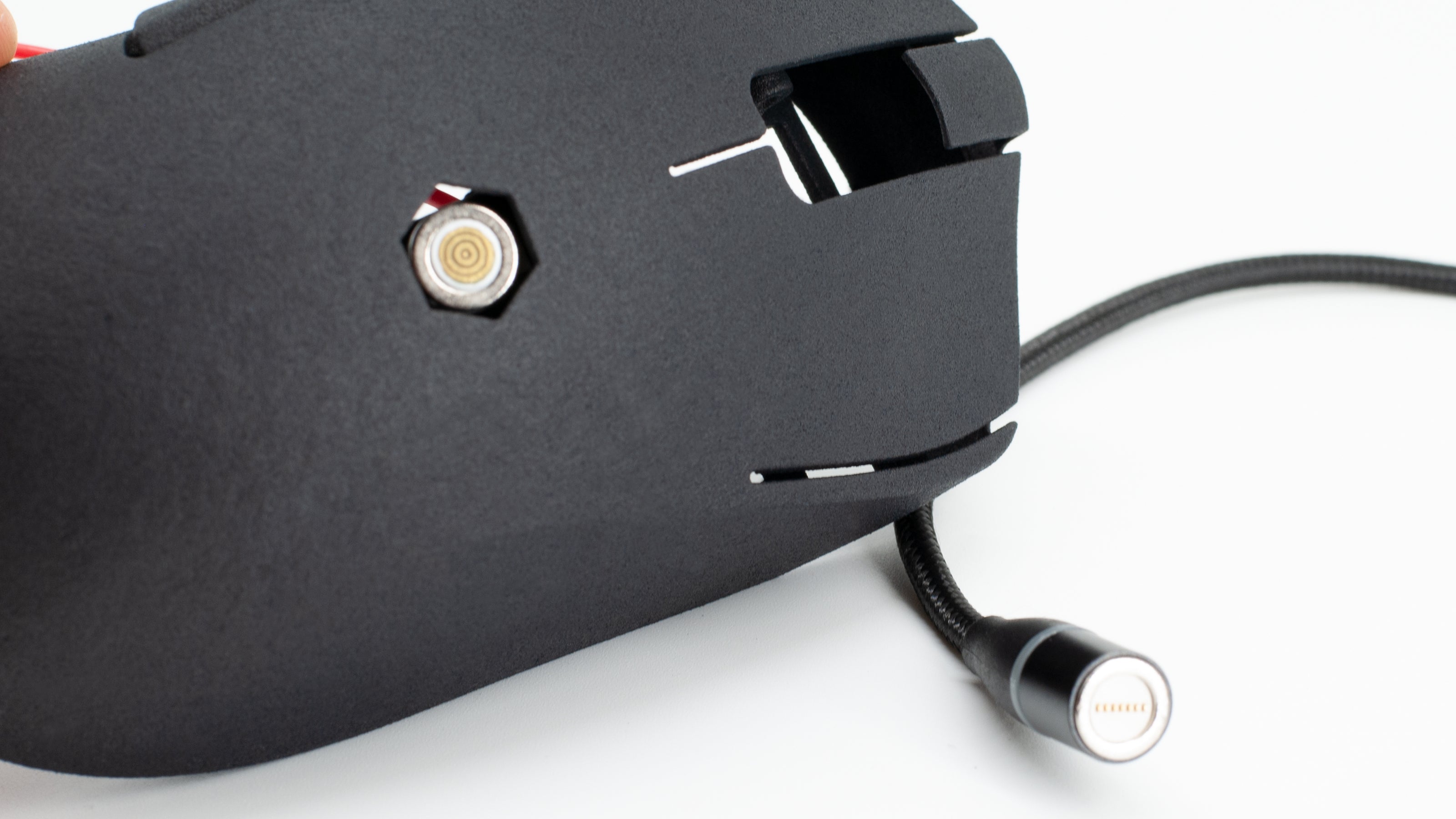

[7] Put the adapter in

Use the charging cable to push the magnetic adapter into the battery. It requires more force than expected!

[8] Add the screws

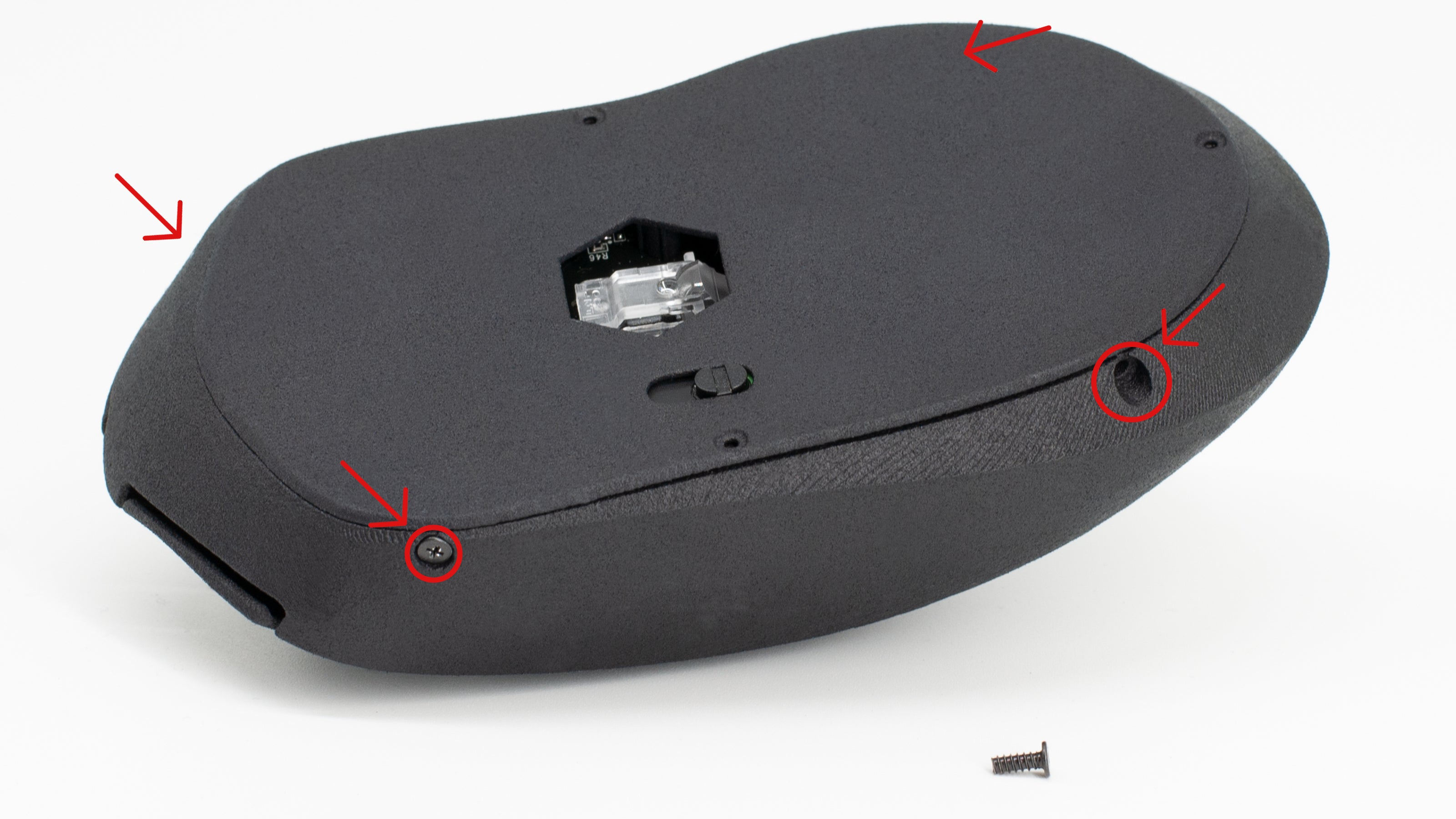

  • Add 4 side screws

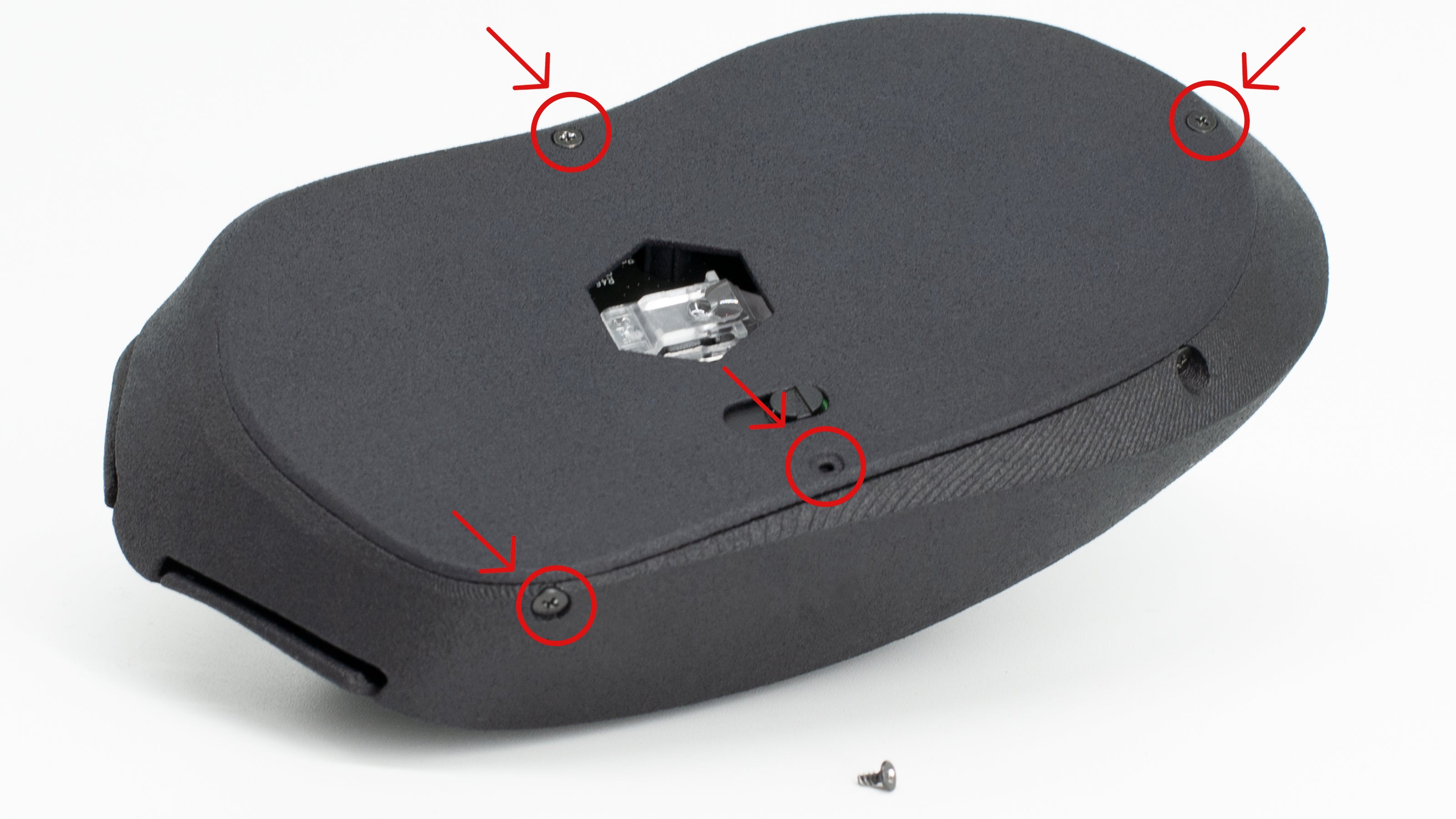

  • Add 4 top small screws

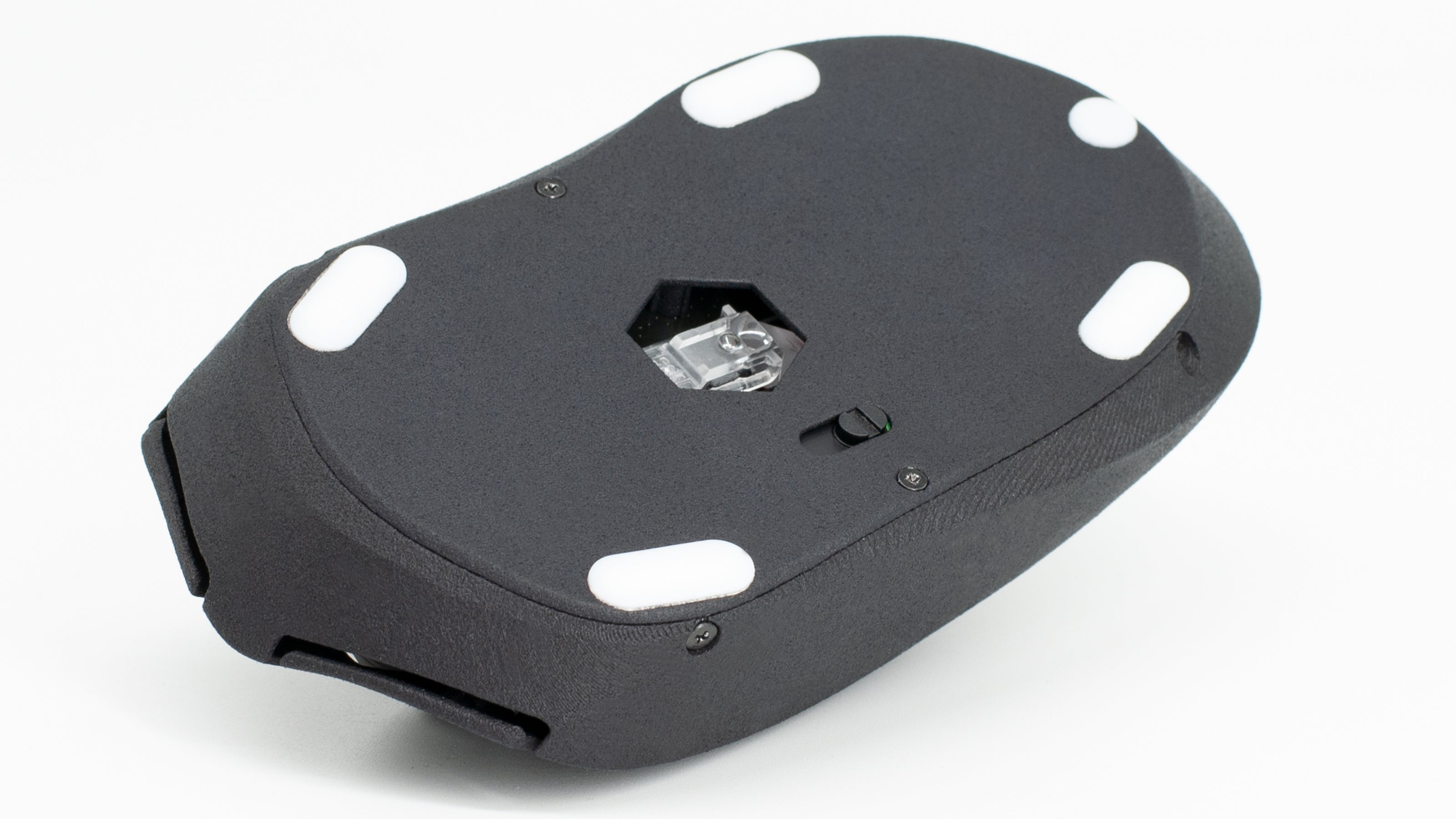

[9] Add mouse feet

For support, contact us here: support@pmm.gg

For further instructions continue here: https://pmm.gg/instructions
