RAZER DEATHADDER V3 PRO DISASSEMBLY

You need a Torx T6 and Phillips PH00 screwdriver. Proceed at your own risk. You can damage the ribbon cable.

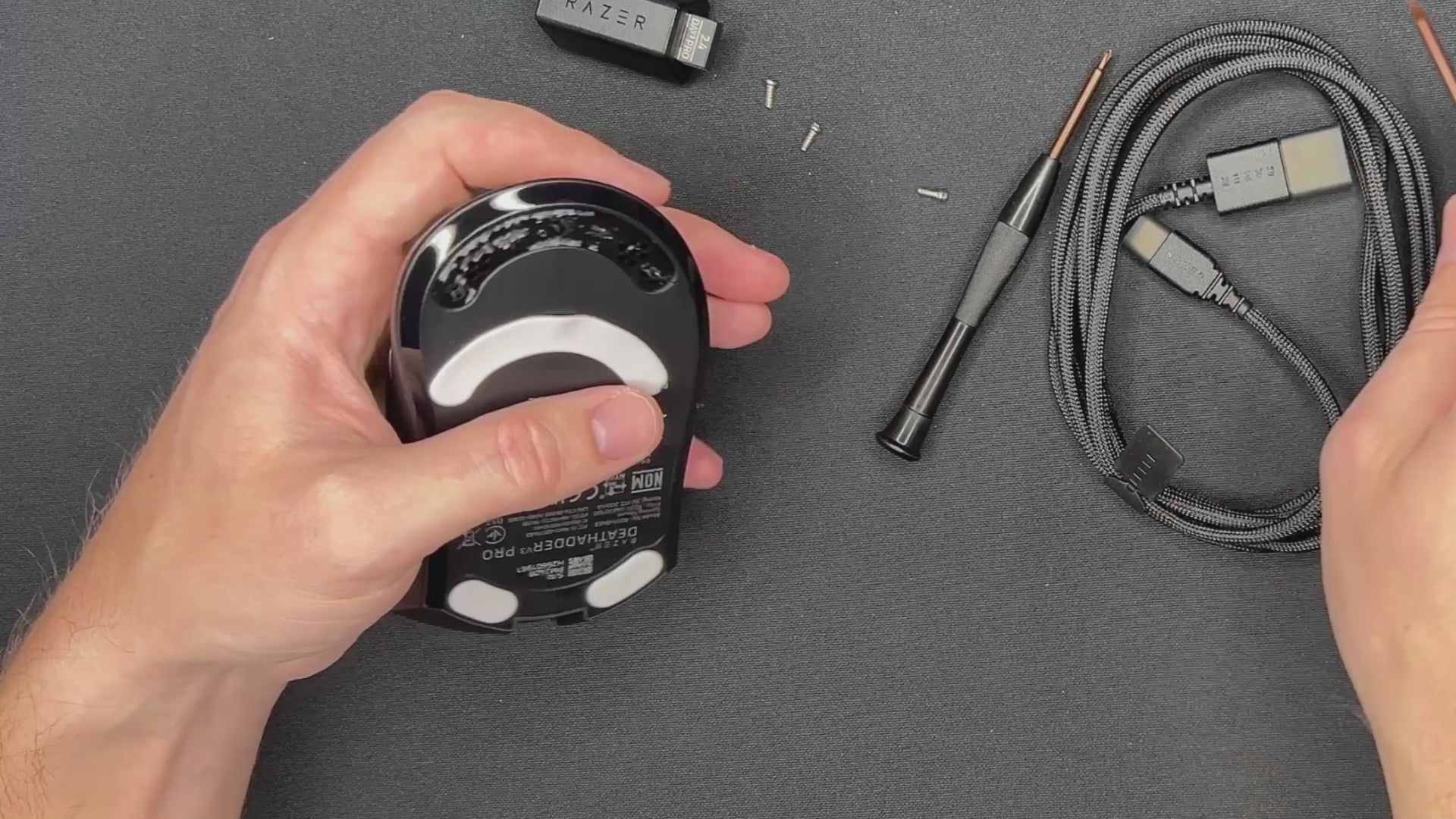

STEP 1: REMOVE THE MOUSE FEET & SCREWS

  1. Use a plastic pry tool or the cross screwdriver to carefully remove the PTFE mouse feet. This will expose the hidden screws beneath them.
  2. Unscrew all visible screws using a Torx T6 screwdriver.

STEP 1

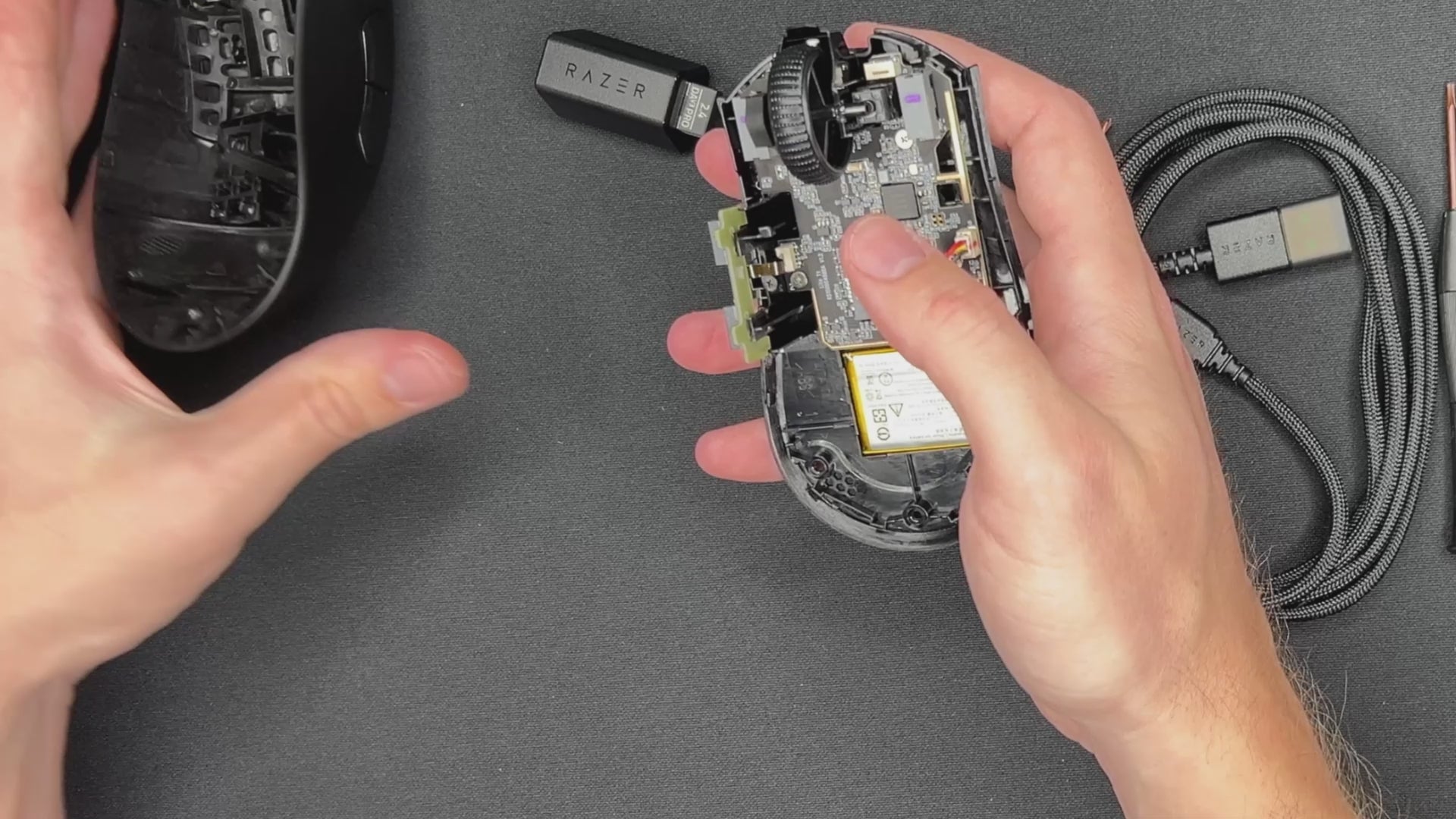

STEP 2: OPENING THE MOUSE SHELL

BEFORE YOU OPEN THE MOUSE: Be careful at this point. Both shells are connected with a ribbon cable in the front of the mouse.

  1. Insert a plastic pry tool, the screwdriver or your nails into the seam between the top and bottom shells.
  2. Gently work around the edges, unclipping the internal latches.
  3. Slowly lift the top shell but do not fully remove it yet, cables are attached to the PCB.
  4. Locate and carefully push the shells in opposite directions to unplug the cable in the front.

STEP 2

STEP 3: DISCONNECT MAIN PCB

  1. Disconnect the battery from the PCB.
  2. Use the cross screwdriver to unscrew the PCB.
  3. Put the main PCB aside.

STEP 3

STEP 4: REMOVE THE BATTERY

  1. Unplug the battery if you haven't done so far.
  2. Slowly start to take out the battery. The bottom shell is fragile. Be careful if you want to use it again.

STEP 4

YOU DID IT!

Well done.

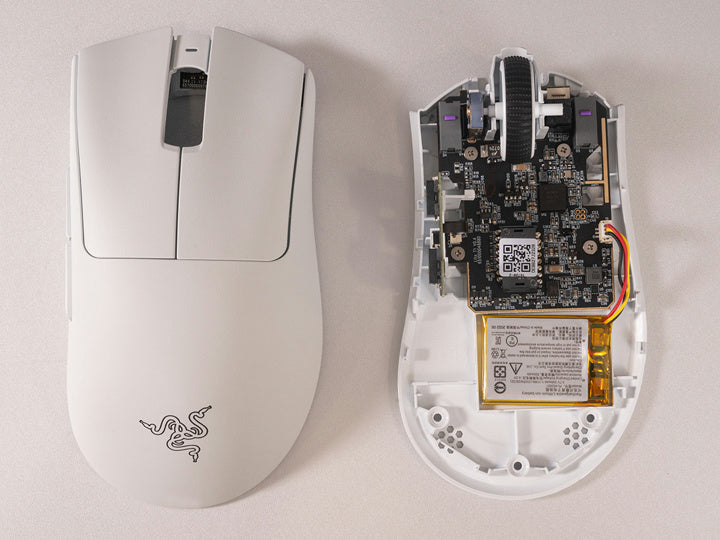

ALL COMPONENTS

  • Main PCB
  • Side Button PCB with ribbon cable
  • Mouse Wheel
  • 300mAh battery
  • T6 screws [3]
  • Cross screws [4]
